KG-RF-10 type 10G broadband microwave amplifier
Annex
Annex
The KG-RF-10 Broadband Microwave Amplifier is a desktop instrument specifically designed for high-speed lithium niobate electro-optic modulators.It amplifies tiny high-speed signal levels to a higher level that drives the modulator, and then drives niobium Lithium (LiNbO3) electro-optical modulator work. In addition it can has a better gain flatness in the broadband range.
Download
KG-RF-10 type 10G broadband microwave amplifier
product description：
The KG-RF-10 Broadband Microwave Amplifier is a desktop instrument specifically designed for high-speed lithium niobate electro-optic modulators.It amplifies tiny high-speed signal levels to a higher level that drives the modulator, and then drives niobium Lithium (LiNbO3) electro-optical modulator work. In addition it can has a better gain flatness in the broadband range.
product feature：
High bandwidth 75K~10GHz
Adjustable gain
Highly integrated
Easy to use
Application：
10G light modulation system
OC-48/STM-16 SONET/SDH and low rate communication system
Optical fiber sensing system
performance parameters：
|
Parameter |
Unit |
Min |
Typ |
Max |
||||
|
Transmission rate |
Gb/s |
0.0001 |
|
12.2 |
||||
|
Operating frequency |
Hz |
75K |
10G |
|
||||
|
Output amplitude |
V |
0 |
|
8.5 |
||||
|
Gain range |
dB |
0 |
24 |
25 |
||||
|
Adjustment accuracy |
dB |
|
1 |
|
||||
|
Output power P1dB |
dBm |
|
22 |
23 |
||||
|
Gain change （ripple） |
dB |
|
±1.5 |
|
||||
|
Group delay(2 to 10GHz) |
ps |
|
±25 |
|
||||
|
Noise index |
dB |
|
11 |
|
||||
|
Input/output impedance |
W |
- |
50 |
- |
||||
|
Input voltage amplitude |
V |
|
0.5 |
1 |
||||
|
Input voltage standing ratio （VSWR） |
75K to 10GHz |
|
|
1.6:1 |
2.25:1 |
|||
|
Output standing voltage standing ratio（VSWR） |
|
|
2:1 |
3:1 |
||||
|
Dimensions （L x W x H） |
mm |
270 x 200 x 70 |
||||||
|
Operating voltage |
V |
AC 220 |
||||||
|
RF interface |
|
SMA(f) |
||||||
|
|
|
|
|
|
|
|||
Limit parameters:
|
Parameter |
Unit |
Min |
Typ |
Max |
|
Input voltage amplitude |
V |
|
|
1 |
|
Operating temperature |
℃ |
-10 |
|
60 |
|
Storage temperature |
℃ |
-40 |
|
85 |
|
Humidity |
% |
5 |
|
90 |

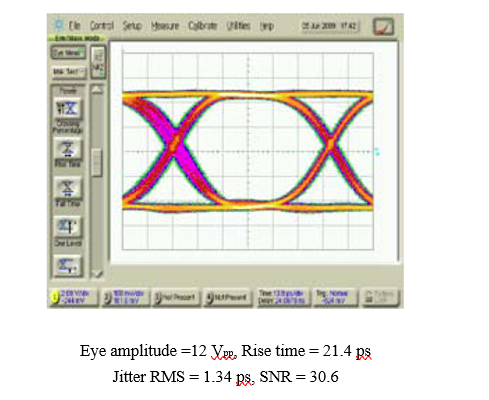

Output eye diagram:
order information：
|
KG |
RF |
XX |
XX |
X |
|
|
Microwave amplifier |
Operating rate ： 10---10Gbps 20---20Gbps 40---40Gbps |
Output characteristic ： Empty ---standard HO ---high voltage output RZ ---RZ signal amplifier |
Package D---desktop |
*please contact our seller if you have special requirements
